Comercializam toata gama de piese pentru remorci :

REMORCI : FLIEGL , METAL-FACH , PRONAR , WIELTON AGRO , OEHLER , KOBZARENKO .

Acestea sunt doar cateva dintre produsele pe care Agro Universal le poate furniza.

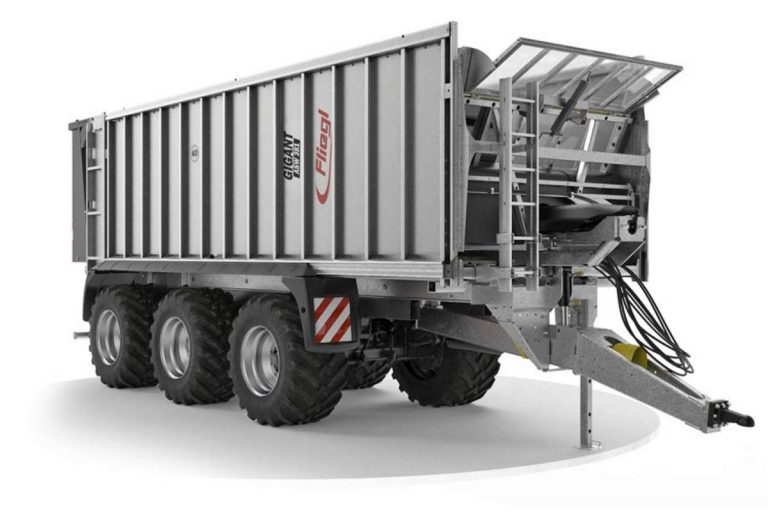

FLIEGL ASW 381

Tridem chassis
Perm. Total weight 29,000 kg, drawbar load 2,000 kg
Hydraulically suspended drawbar, rotatable for top hitching, hitch height can be easily adjusted as required
DIN towing eye 40 (Ø 40 mm)
Swap body
Drop support foot
2-circuit air brake with ALB
Axle unit can be moved mechanically
3 brake axles: middle rigid, first and last steered, hydraulically lockable
Axle version 410 x 120 brake drum BPW
Tires 385/65 R 22.5 new
40 km / h version with EC type approval and COC papers
Parabolic suspension Gigant unit
Bridge 7,300 mm x 2,380 mm
Back wall and side walls 2,000 mm high, with front wall increase
hydraulic rear wall 800 mm with grain pusher 420 mm x 250 mm
hydraulic sliding floor with all-round polyurethane strips, best sealing, hose routing
LED lighting 12 V with 7-pin connector

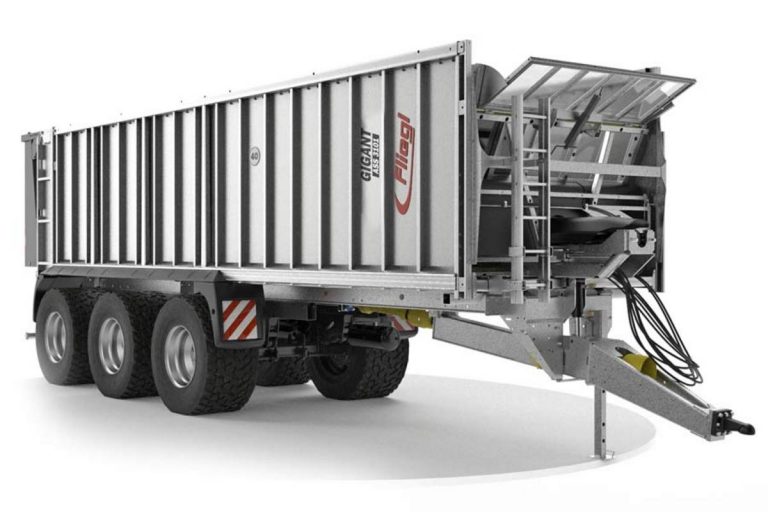

FLIEGL ASW 3101

Tridem chassis
Perm. Total weight 29,000 kg, drawbar load 2,000 kg
Hydraulically suspended drawbar, rotatable for top hitching, hitch height can be easily adjusted as required
DIN towing eye 40 (Ø 40 mm)
Swap body
Drop support foot
2-circuit air brake with ALB
Axle unit can be moved mechanically
3 brake axles: middle rigid, first and last steered, hydraulically lockable
Axle version 410 x 120 brake drum BPW
Tires 385/65 R 22.5 new
40 km / h version with EC type approval and COC papers
Parabolic suspension Gigant unit Plus
Bridge 9,300 mm x 2,380 mm
Back wall and side walls 2,000 mm high, with front wall increase
hydraulic rear wall 800 mm with grain pusher 420 mm x 250 mm
hydraulic sliding floor with all-round polyurethane strips, best sealing, hose routing
LED lighting 12 V with 7-pin connector

Tridem chassis
Perm. Total weight 29,000 kg, drawbar load 2,000 kg
Hydraulically suspended drawbar, rotatable for top hitching, hitch height can be easily adjusted as required
DIN towing eye 40 (Ø 40 mm)
Swap body
Drop support foot
2-circuit air brake with ALB
Axle unit can be moved mechanically
3 brake axles: middle rigid, first and last steered, hydraulically lockable
Axle version 410 x 120 brake drum BPW
Tires 385/65 R 22.5 new
40 km / h version with EC type approval and COC papers
Parabolic suspension Gigant unit Plus
Bridge 9,300 mm x 2,380 mm
Back wall and side walls 2,000 mm high, with front wall increase
hydraulic rear wall 800 mm with grain pusher 420 mm x 250 mm
hydraulic sliding floor with all-round polyurethane strips, best sealing, hose routing
LED lighting 12 V with 7-pin connector

MODEL	T711/1	T711/2	T711/3
GREUTATE TOTALA [kg]	12 000	14 000	16 000
CAPACITATE DE INCARCARE [kg]	8000	10 000	12 000
GREUTATE [kg]	3800	3900	4000
LUNGIME / LATIME / INALTIME TOTALA [mm]	6580-7140 / 2550 / 1300-4000	6580-7140 / 2550 / 1300-4000	6580-7140 / 2550 / 1300-4000
LUNGIME / LATIME / INALTIME A SPATIULUI DE MARFA [MM]	4250-4725 / 2410 / 500	4510 / 2410 / 600	4510 / 2410 / 600

INALTIMEA SPATIULUI DE DEPOZITARE FATA DE PAMANT [mm]	1300	1300	1300
CAPACITATE [m3]	5,4	6,5	6,5

MODEL	T750
CAPACITATE DE TRANSPORT [kg]	14,000
GREUTATE [kg]	7000
LUNGIME / LATIME / INALTIME TOTALA [mm]	10 100/2900/4000
LUNGIME/ LATIME/ INALTIME A SPATIULUI DE TRANSPORT [mm]	7900 / 2200-2250 / 2000
inaltimea spatiului de depozitare fata de pamant [mm]	1720
CapacitATE [m 3 ]	40

MODEL	T935/6
CAPACITATE DE TRANSPORT [kg]	18 000
GREUTATE [kg]	7000-8500*
LUNGIME / LATIME / INALTIME TOTALA [mm]	8500 / 3000* / 3600*
LUNGIME/ LATIME/ INALTIME A SPATIULUI DE TRANSPORT [mm]	6600 / 2380 / 2000
inaltimea spatiului de depozitare fata de pamant [mm]	1500*
Volum [m3]	32
TIMP DE DESCARCARE [sec]	32

GREUTATE TOTALA ADMISA	10990	[kg]
GREUTATE TOTALA PERMISA	8000	[kg]
GREUTATE REMORCA GOALA	2990	[kg]
VOLUM DE INCARCARE	9.8	[m 3]
SPATIU DE INCARCARE	9.8	[m 2]


DIMENSIUNI: LUNGIME / LATIME / INALTIME	6455/2390/2243	[mm]
INALTIMEA PERETELUI DIN LATIME	500+500 (option)	[mm]
GROSIMEA PODELEI / PERETILOR	4/2	[mm]
INALTIMEA PLATFORMEI FAT DE PAMANT	1215	[mm]
Wheel track:	1730	[mm]
